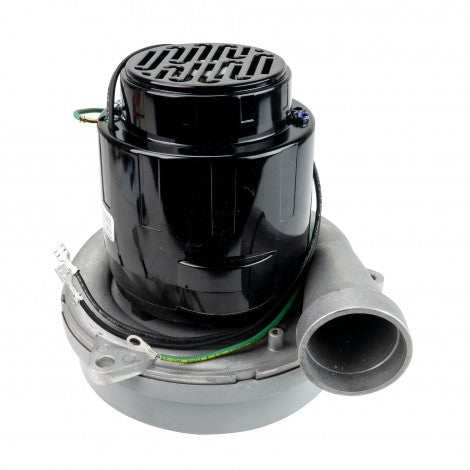

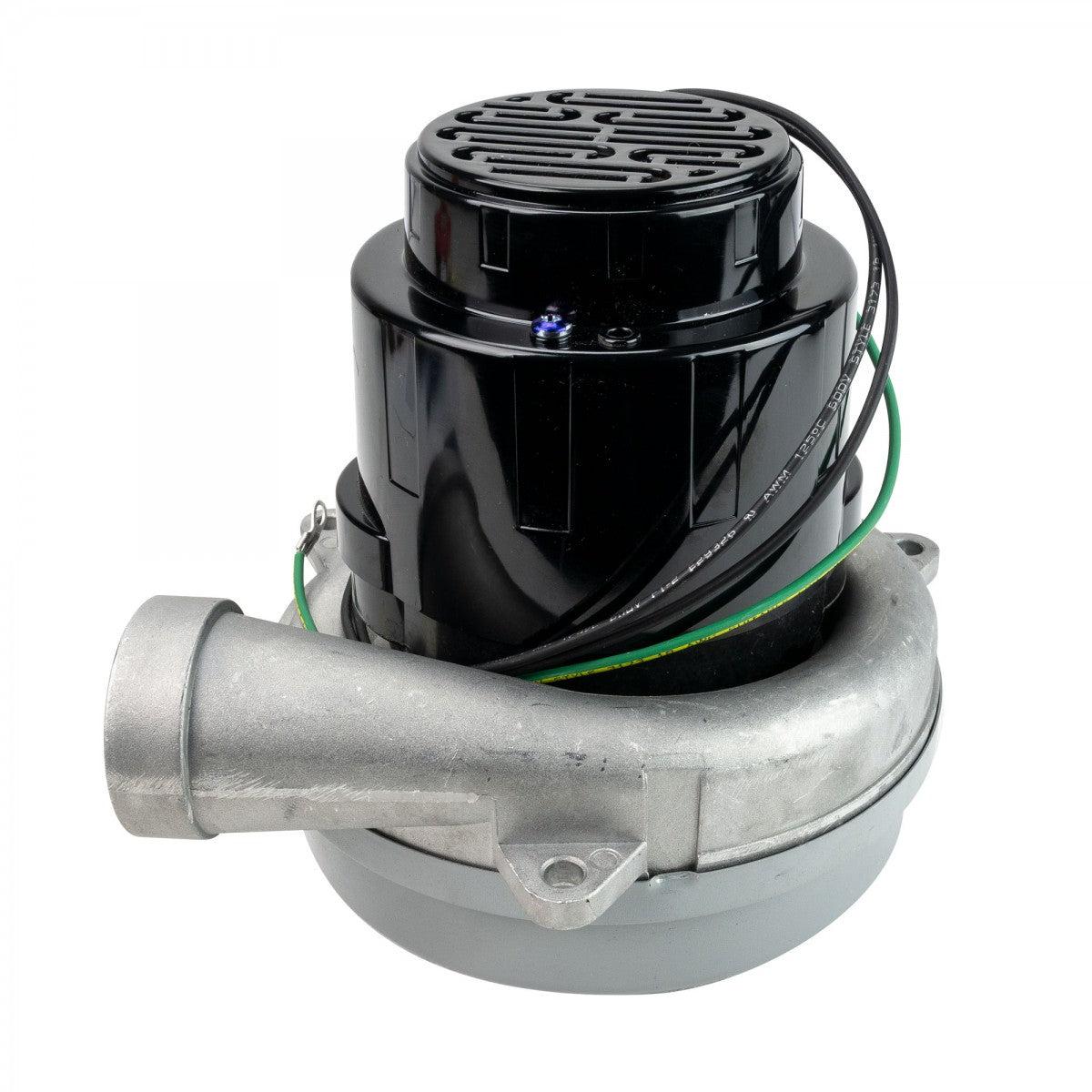

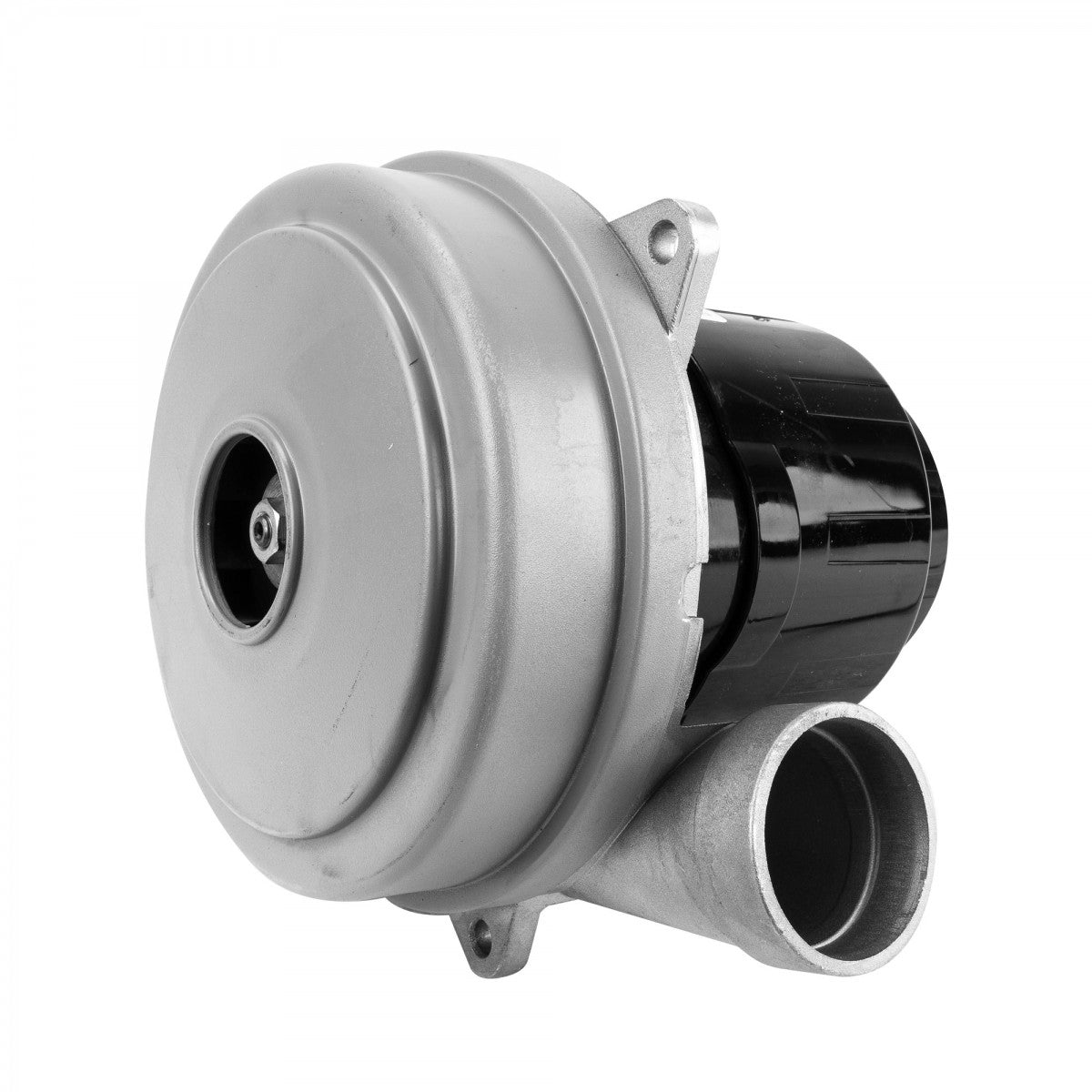

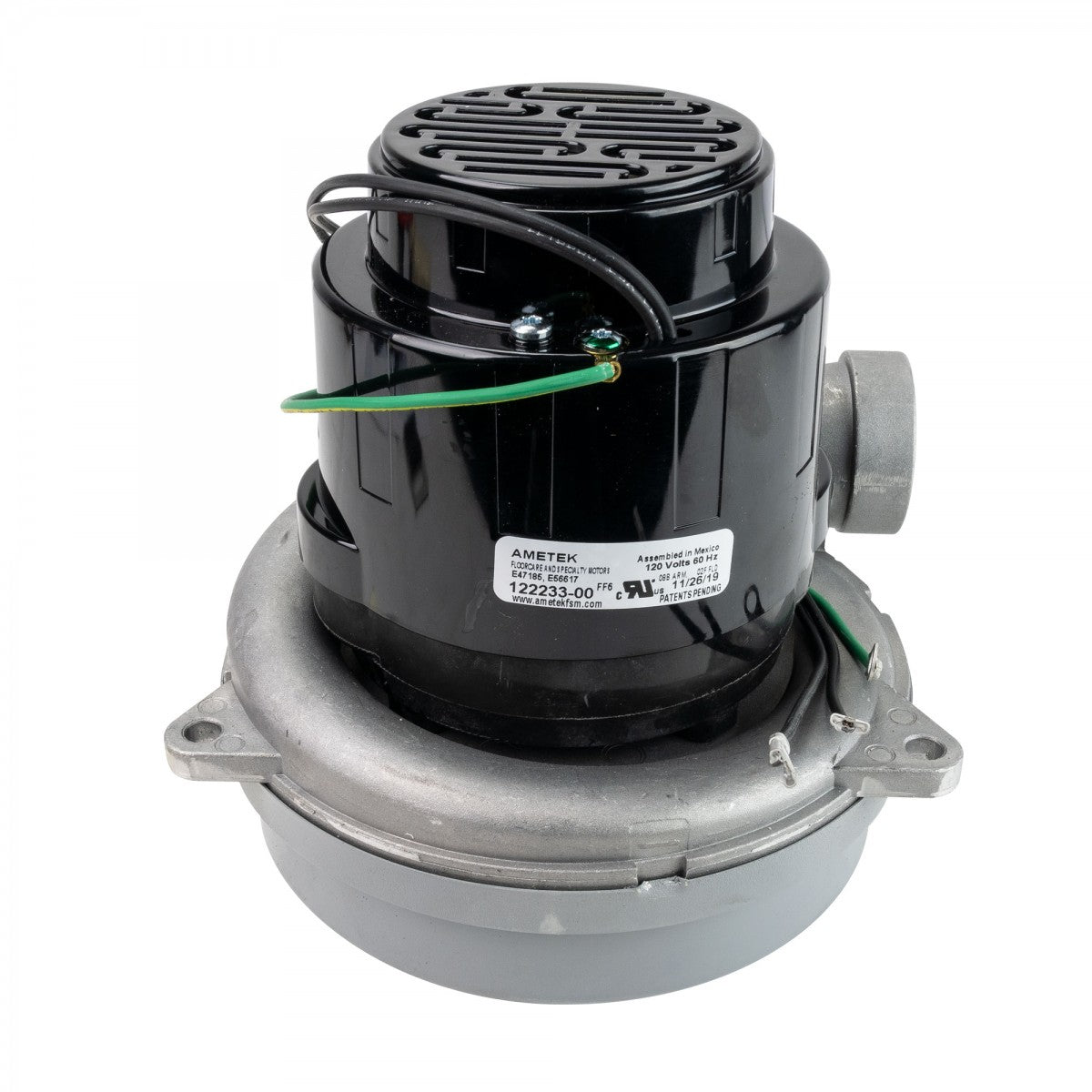

Ametek Lamb OEM Two Stage Tangential Bypass Motor 6.6” / 120 V – 122483-00

Lamb/Ametek 122483-00 Vacuum Motor

The Lamb/Ametek 122483-00 is a high-performance 6.6-inch, two-stage tangential bypass vacuum motor designed for demanding commercial, residential, and central vacuum applications.

Key Features

• Two-Stage Tangential Bypass Design – Two-stage fan system provides strong airflow and suction performance.

• 6.6-Inch Motor Diameter – Large 6.6" design provides high air throughput for demanding vacuum applications.

• 1550-Watt Motor – High-performance motor designed for powerful and reliable operation.

• 659 Peak Air Watts – Delivers strong cleaning power and suction performance.

• 136 CFM Airflow – Provides high-volume airflow for efficient vacuum performance.

• 145" Sealed Water Lift – High suction capability for demanding cleaning applications.

• 120V AC Operation – Designed for standard 120V electrical systems.

• Double Ball Bearings – Durable bearing design helps provide smooth and reliable motor operation.

• Brushed Motor – Uses replaceable carbon brushes for extended serviceability.

• High-Efficiency Cooling System – Designed to help maintain reliable motor performance.

• Tangential Discharge – Separates motor cooling air from the vacuum's working air.

• 1000+ Hour Brush Life – Manufacturer data indicates 1000+ hours of life with curved brushes under specified conditions.

Specifications

• Brand: Lamb / Ametek

• Model: 122483-00

• Motor Type: Tangential Bypass

• Fan Stages: 2

• Motor Diameter: 6.6" / 169 mm

• Voltage: 120V AC

• Power: 1550 Watts

• Peak Air Watts: 659

• Airflow: 136 CFM

• Sealed Water Lift: 145"

• Output: Tangential

• Motor Platform: 6.6" Premier Platform

• Flow Class: High Performance

Applications

• Residential central vacuum systems

• Commercial vacuum systems

• Car wash vacuum and blower systems

• Equipment requiring separation of working air from motor cooling air

• Other applications requiring a high-performance bypass motor
