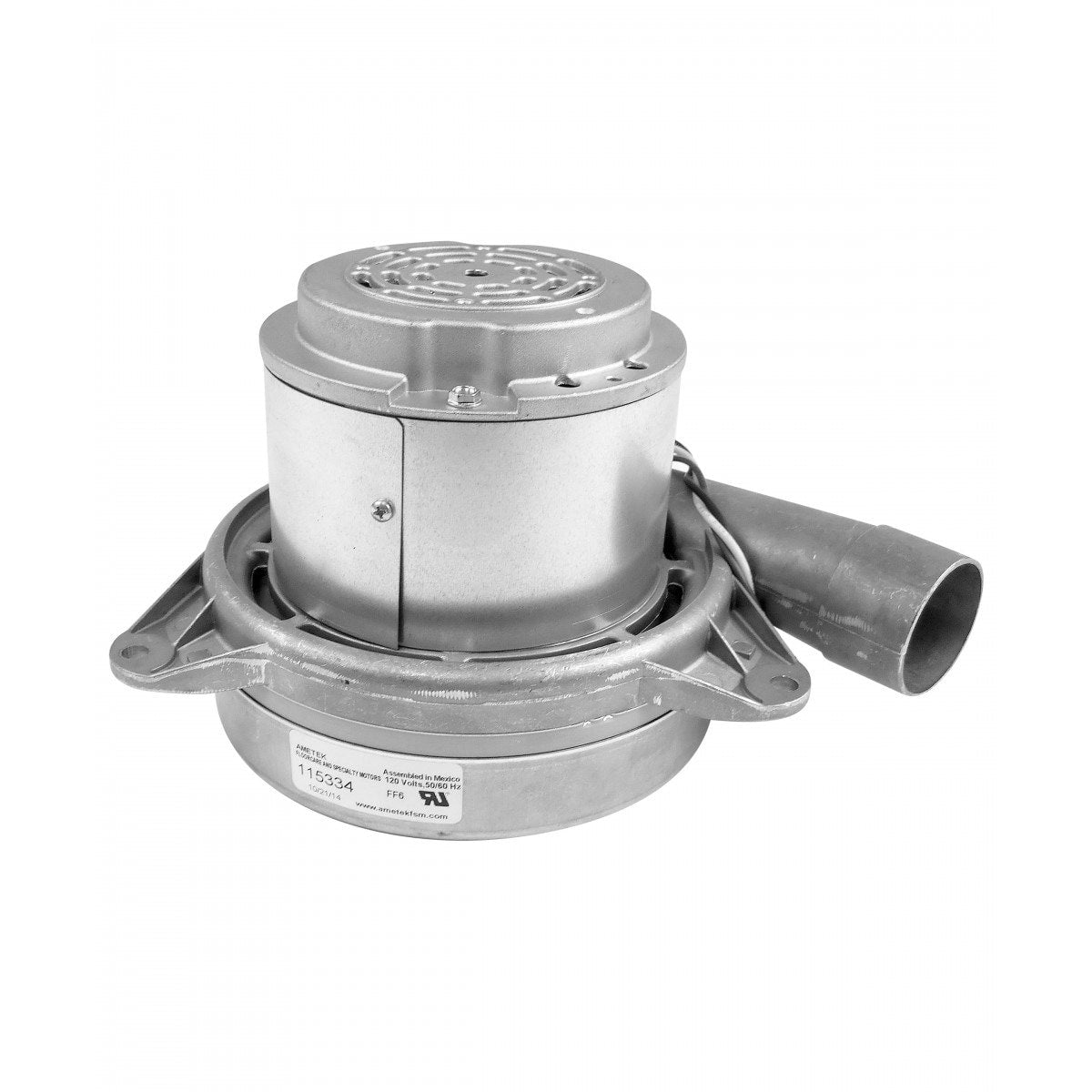

AMETEK LAMB MOTOR TANGENTIAL 115334

Regular price $299.99 Save $-299.99
10 in stock

TECHNICAL SPECS:

  • Motor/Blower Type: Bypass
  • Discharge: Tangential
  • Blower Stages: 2
  • No. of Speeds: 1
  • Motor Enclosure Design: Open Dripproof
  • CFM @ 2-In. Orifice: 102.7
  • Vacuum (H2O Sealed): 110.0
  • Voltage: 120
  • Hz: 60/50
  • Phase: 1
  • Max. Amps: 13.0
  • Max. Air Watts: 384
  • Motor Mounting Type: Lug
  • Motor Design: Universal AC/DC
  • Motor Mounting Position: All Angle
  • Motor Thermal Protection: None
  • Ins. Class: A
  • Bearings: Ball
  • Ambient Temperature: 40 Degrees C
  • Body Dia.: 7.2″
  • Overall Height: 6-1/16″
  • Mounting Brackets: Metal
  • Duty: Intermittent
  • Average Life: 700 hr.
  • Standards: UL Recognized (E47185), CSA Certified (LR31393)
